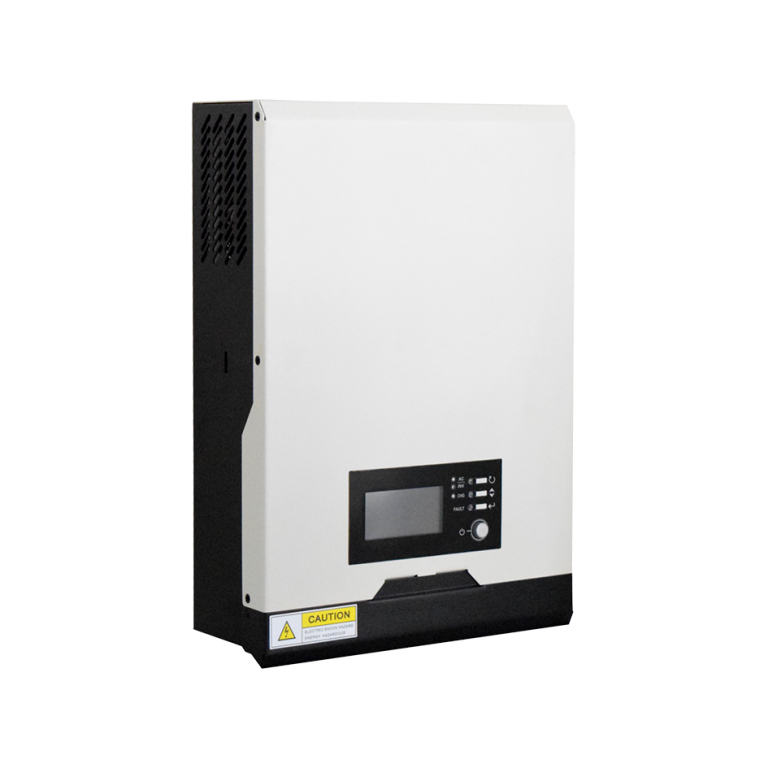

ICA SOLAR SNV-GF1021 1kW/24V

ICA Solar SNV-GF1021 is single phase solar off-grid inverter charger with capacity of 1000W, 24Vdc.





Brands :

ICA SOLAR

Categories :

Solar Inverters
Pesan
General Information
Pure Sine Wave Output
Delivers clean and stable pure sine wave power, making it safe for sensitive electronics such as computers, networking equipment, and modern home appliances.
Integrated Solar & AC Charging (MPPT Ready)
Built-in MPPT solar charger supports up to 1000W PV input with a wide MPPT voltage range, while also allowing AC charging—ensuring reliable battery charging from multiple energy sources.
Flexible & Intelligent Power Management
Configurable input priority (Solar or AC) via LCD, selectable input voltage ranges, and adjustable charging currents provide maximum flexibility for different installations and load requirements.
Battery Equalization
Function to Optimize Battery Performance and Extend Lifecycle
Technical Specifications
Rated Output Power (W)
1000W
Battery Nominal DC Voltage
24Vdc
Max. PV Input DC Voltage
102Vdc
MPPT Voltage Range
30~80Vdc
Max. Charging Current
60A
Phase
Single phase
Dimension (DxWxH)
88 x 225 x 320mm
Net Weight
5kg
INPUT
Voltage
220Vac
Selectable Voltage Range
170~280Vac (for personal computers); 90~280Vac (for home appliances)
Frequency Range
50Hz/60Hz (auto sensing)
OUTPUT
AC Voltage Regulation (Battery Mode)
220Vac±5%
Surge Power
2000VA
Efficiency (Peak)
93%
Transfer Time
10ms (for personal computers); 20ms (for home appliances)
Waveform
Pure Sine Wave
BATTERY
Battery Voltage
24Vdc
Floating Charge Voltage
27Vdc
Overcharge Protection
31Vdc
SOLAR CHARGER & AC CHARGER
Solar Charger Type
MPPT
Max. PV Array Power
1000W
Max. Solar Charge Current
40A
Max. AC Charge Current
20A
Communication Interface
USB/RS232
OPERATING ENVIRONMENT
Humidity
5% to 95% relative humidity (non-condensing)
Operating Temperature
-10°C to 50°C
Storage Temperature
-15°C to 60°C
