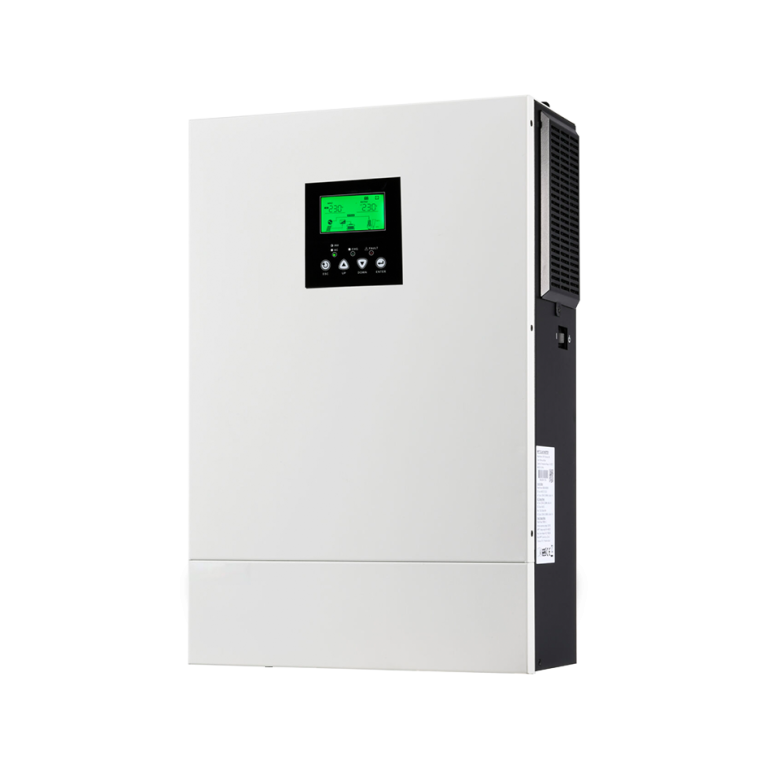

ICA SOLAR SNV-GF10041 is single phase solar off-grid inverter charger with capacity of 10.000W,48Vdc.
Brands :
ICA SOLAR
Categories :
Off-Grid
Informasi Umum
Pure Sine Wave Output
Delivers clean and stable pure sine wave power, making it safe for sensitive electronics such as computers, networking equipment, and modern home appliances.
Integrated Solar & AC Charging (MPPT Ready)
Built-in MPPT solar charger supports up to 1000W PV input with a wide MPPT voltage range, while also allowing AC charging—ensuring reliable battery charging from multiple energy sources.
Flexible & Intelligent Power Management
Configurable input priority (Solar or AC) via LCD, selectable input voltage ranges, and adjustable charging currents provide maximum flexibility for different installations and load requirements.
Battery Equalization Function to Optimize Battery Performance and Extend Lifecycle
Spesifikasi Teknis
Rated Output Power (W)
10.000 W
Battery Nominal DC Voltage
48 Vdc
Max. PV Input DC Voltage
500 Vdc
MPPT Voltage Range
90–450 Vdc; min. 100 Vdc without battery
Max. Charging Current
180 A
Phase
Single phase
Dimensions (D x W x H)
141 x 322 x 497 mm
Net Weight
16,3 kg
Input
Output Voltage
230 Vac
Selectable Voltage Range
170–280 Vac (for personal computers); 90–280 Vac (for home appliances)
Frequency Range
50 Hz/60 Hz (auto sensing)
Output
Output Power
10 kVA/10 kW
AC Voltage Regulation (Battery Mode)
230 Vac ±5%
Surge Power
20 kVA
Efficiency (Peak)
93%
Transfer Time
10 ms (for personal computers); 20 ms (for home appliances)
