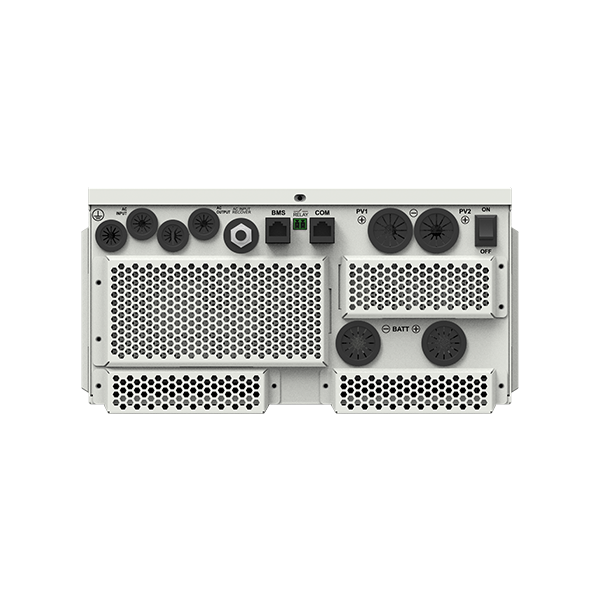

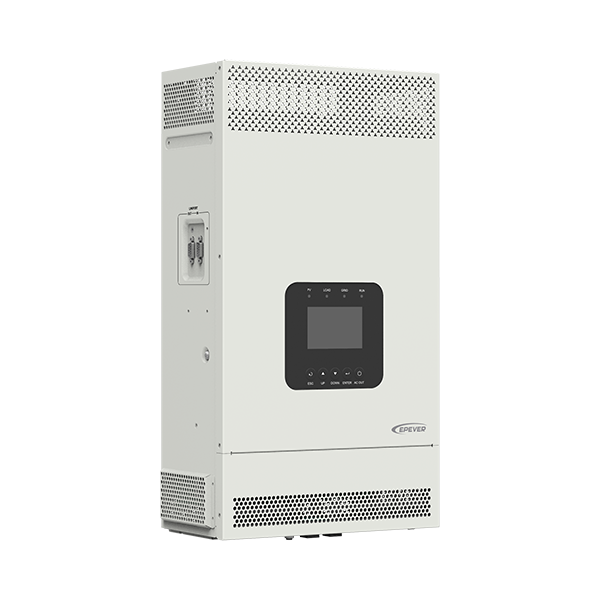

EPEVER UCP5542-1050P20C 5.5kW/48V

The brand new Unicorn Pro series is an inverter/charger that supports utility charging, oil generator charging, solar charging, dual output from utility or inverter, multiple operating modes, and smart energy management. It supports parallel operation for multiple units in single phase or three phase. The inverter with power of 3.5kW and 5.5kW perfectly suits residential applications, schools, health facilities, government buildings, and areas where the electricity is unstable.

Brands :

EPEVER

Categories :

Solar Inverters
Pesan
General Information
Applicable for pure off grid / backup power / self-consuption
PV input voltage range : 80VDC - 500 VDC
PV input current up to 40A
Support battery mode & non battery mode
Battery & PV reverse polarity protection
Dual pure sine wave output
Support single-phase or three-phase parallel operatio (up to 16 units)
Technical Specifications
Utility input
Utility Input Voltage
176VAC to 264VAC (Default)
Utility Input Frequency
45Hz to 65Hz
Maximum Utility Charging Current
100A
Switch Response Time
Switch Response Time – Inverter to Utility: 10ms
Switch Response Time – Utility to Inverter (when the load power is higher than 100W): 20ms
Inverter output
Inverter Rated Power (@30℃)
5500W
3-second Transient Surge Output Power
8500W
Inverter Output Voltage
220/230VAC±3%
Inverter Frequency
50/60Hz±0.2%
Output Voltage Waveform
Pure sine wave
Load Power Factor
0.2－1(VA ≤ Rated output power)
THDu (Total Harmonic Voltage Distortion)
≤3%
Maximum Load Efficiency
92%
Maximum Inverter Efficiency
94%
Maximum Main Load
5500W
Maximum Second Load
5500W
Main Output Cut-Off Voltage
Equal to “Under Voltage Warning Voltage”
Second Output Cut-Off Voltage
Equal to “Under Voltage Warning Voltage”
Dual Output Recovery Voltage
Equal to “Under Voltage Warning Voltage”
Solar controller
PV Maximum Open-circuit Voltage
500V (At minimum operating environment temperature)
440V (At 25℃)
MPPT Voltage Range
85V to 450V
Number of MPPTs
2
PV Maximum Input Current
20A+20A
PV Maximum Short-circuit Current
22A+22A
PV Maximum Input Power
2×3300W
PV Maximum Charging Current
100A
MPPT Maximum efficiency
≥99.5%
Battery
Battery Rated Voltage
48VDC
Battery Work Voltage Range
40.8VDC to 64.0VDC
Battery Maximum Charging Current
100A
Others
No-load Losses
≤1.1A
Standby Current
≤0.8A
Communication with BMS
RS485
Communication with Portal
RS485
Parallel Function
Yes, 12 units in standard, 16 units at most
Work Temperature Range
-20℃ to +50℃ (When the environment temperature exceeds 30℃, the actual output power is reduced appropriately)
Storage Temperature Range
-25℃ to +60℃
Enclosure
IP20 (With ANTI-DUST KIT)
Relative Humidity
< 95% (N.C.)
Altitude
<4000M (If the altitude exceeds 2000 meters, the actual output power is reduced appropriately)
Certifications and Standards
IEC 62109-1, IEC 62109-2, IEC 61683, IEC 62368
Mechanical parameters
Dimension (Length x Width x Height)
590mm × 300mm × 163mm
Mounting size (Length x Width)
568mm × 245mm
Mounting hole size
Φ9mm/Φ10mm
Net Weight
15.5Kg
