ICA SOLAR SNV-GH10041 10kW/48V

ICA SOLAR SNV-GH10041 is a hybrid bidirectional three phase solar inverter with capacity of 10.000W, 48Vdc.

Brands :

ICA SOLAR

Categories :

Hybrid
SNV-GH10041_1

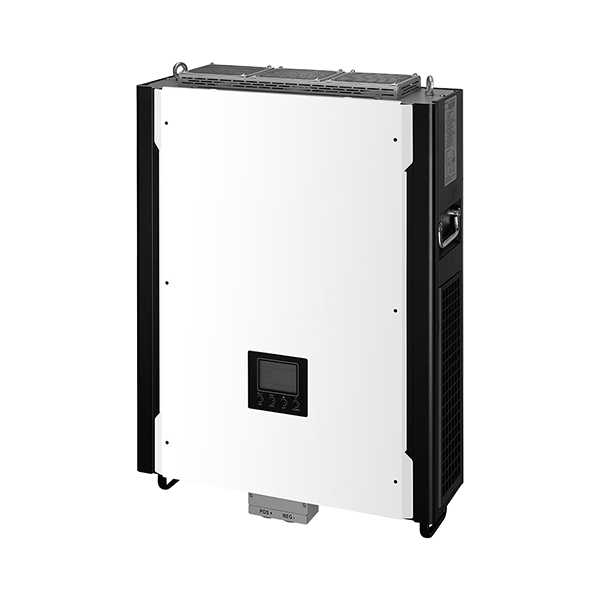

SNV-GH10041_2
Informasi Umum
Bi-directional Power Flow
Charges batteries from solar or grid, and discharges to supply loads or feed back to the grid.
Seamless Backup
Automatically switches to battery during grid outages for uninterrupted power.
High Efficiency
Optimized conversion reduces energy loss and improves savings.
Remote Monitoring
Access system performance data anytime, anywhere.
Self-consumption and feed-in to the grid
User-adjustable supply priority for PV, battery or grid
User-adjustable battery charging current suits different types of batteries
Operation modes: Grid-tied, off-grid and grid-tied with backup
Built-in timer for various mode of on/off operation
Multiple communication for USB, RS-232, Modbus and SNMP
Monitoring software for real-time status display and control
Parallel operation up to 6 units for up to 60KW
Spesifikasi Teknis
Rated Output Power (W)
10.000 W
Battery Nominal DC Voltage
48 Vdc
Max. PV Input DC Voltage
900 Vdc
MPPT Voltage Range
350–950 Vdc
Max. Charging Current
10–200 A
Phase
3-phase in/3-phase out
Dimensions (D x W x H)
167,2 x 500 x 622 mm
Net Weight
40 kg
Max. PV Input Power
14.850 W
Maximum Charging Power
9.600 W
Grid-Tie Operation
Input (DC)
Nominal DC Voltage / Max. DC Voltage
720 Vdc/900 Vdc
Start-up Voltage / Initial Feeding Voltage
320 Vdc/350 Vdc
Number of MPPTs / Max. Input Current
2 / 2 x 18,6 A
Grid Output (AC)
Nominal Output Voltage
220 Vac (P-N) / 380 Vac (P-P)
Output Voltage Range
184–265 Vac (P-N)
Nominal Output Current
15,2 A per phase
Power Factor (cos Φ)
>0,99
Efficiency
Max. Conversion Efficiency (DC/AC)
96%
Off-Grid Operation
AC Input
AC Start-up Voltage / Auto Restart Voltage
120–140 Vac (P-N) / 180 Vac (P-N)
Acceptable Input Voltage Range
170–290 Vac (P-N)
PV Input (DC)
Max. DC Voltage
900 Vdc
MPPT Voltage Range
350–950 Vdc
Number of MPPTs / Max. Input Current
2 / 2 x 18,6 A
Battery Mode Output (AC)
Nominal Output Voltage
220 Vac (P-N) / 380 Vac (P-P)
Output Waveform
Pure Sine Wave
Efficiency (DC to AC)
91%
Hybrid Operation
PV Input
Nominal DC Voltage / Max. DC Voltage
720 Vdc / 900 Vdc
Start-up Voltage / Initial Feeding Voltage
320 Vdc / 350 Vdc
MPPT Voltage Range
350–950 Vdc
Number of MPPTs / Max. Input Current
2 / 2 x 18,6 A
Grid Output (AC)
Nominal Output Voltage
220 Vac (P-N) / 380 Vac (P-P)
Output Voltage Range
184–265 Vac (P-N)
Nominal Output Current
15,2 A per phase
AC Input
AC Start-up Voltage / Auto Restart Voltage
120–140 Vac (P-N) / 180 Vac (P-N)
Acceptable Input Voltage Range
170–290 Vac (P-N)
Max. AC Input Current
40 A
Battery Mode Output (AC)
Nominal Output Voltage
220 Vac (P-N) / 380 Vac (P-P)
Efficiency (DC to AC)
91%
Interface
Communication Interface
RS-232 / USB / Dry Contact
Intelligent Slot
Optional SNMP, Modbus and AS-400 cards available
Environment
Relative Humidity
0–90% (non-condensing)
Operating Temperature Range
-10°C to 55°C
