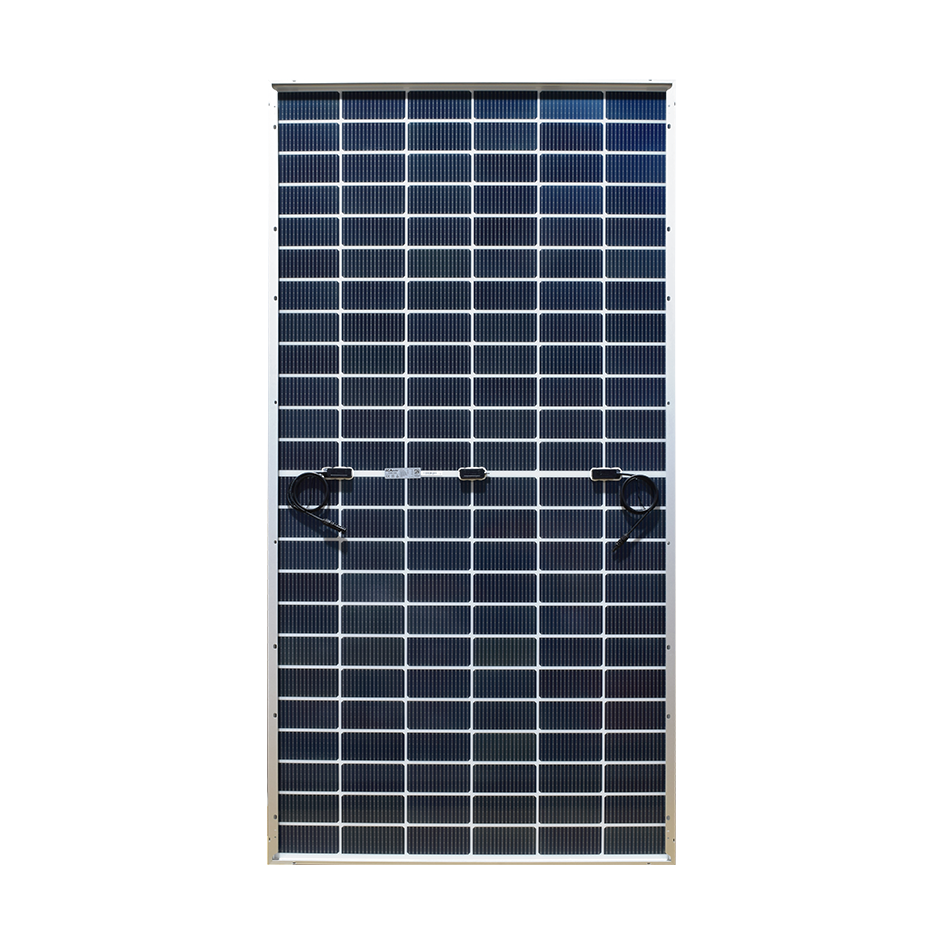

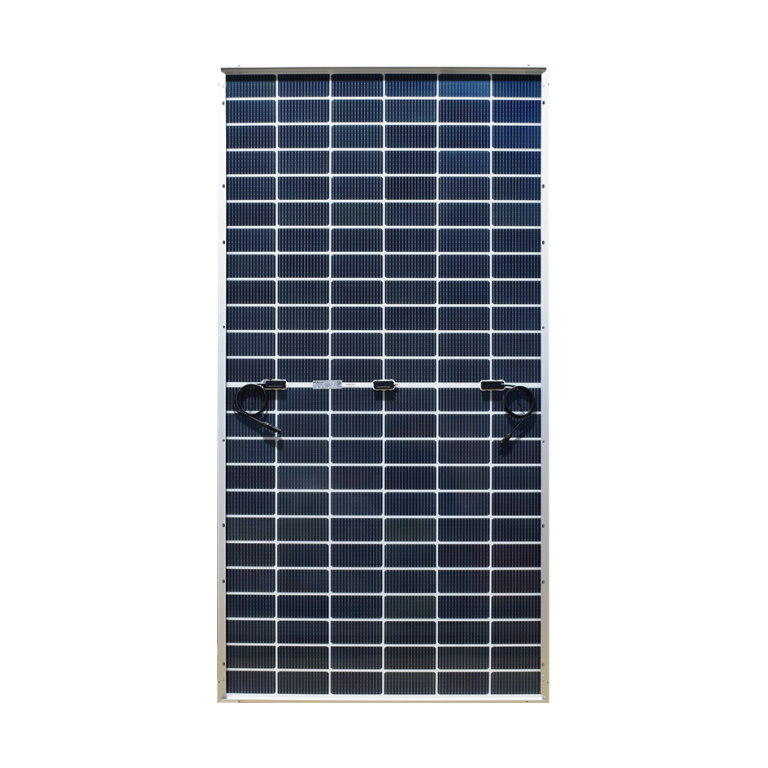

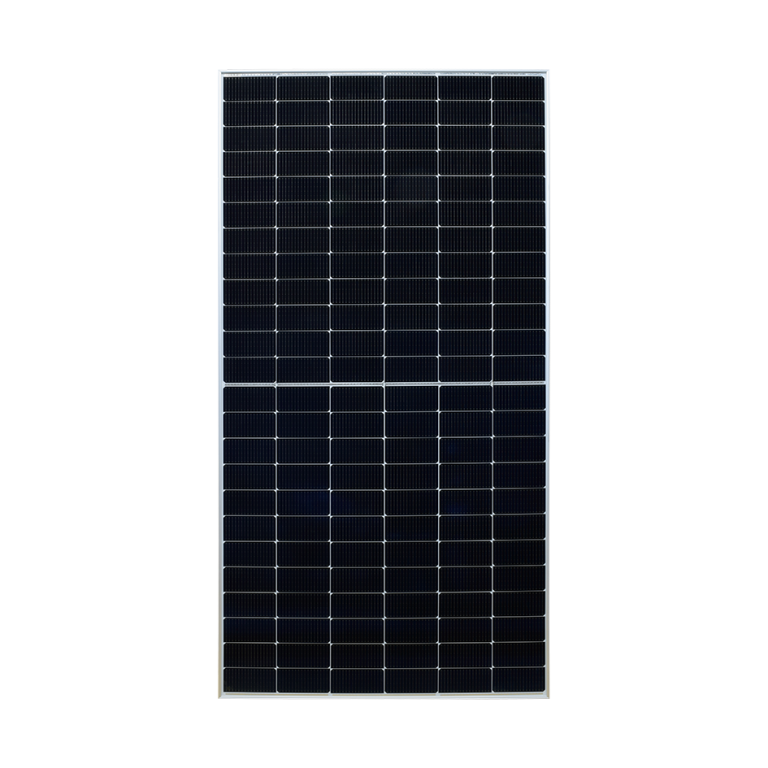

ICA SOLAR ICA550-72HMI 550Wp Mono

The ICA550-72HMI is a high-efficiency solar module built with half-cut 144 PERC 182 x 91mm cells, delivering superior performance and reliability. The half-cut design reduces power loss, improves shade tolerance, and enhances durability, making it ideal for both commercial and industrial installations.

Brands :

ICA SOLAR

Categories :

Mono
1-3je0cl
2-fbcvui
Informasi Umum
High Efficiency
Advanced PERC technology maximizes energy yield.
Half-Cut Design
Lower resistive loss and improved performance in partial shading.
Durability
Engineered for long service life with robust construction.
Versatility
Suitable for large-scale solar projects and rooftop systems.
Spesifikasi Teknis
Max. Power at STC (Pmax)
STC 550 W; NOCT 414,30 W
Max. Power Voltage (Vmp)
STC 42,40 V; NOCT 39,10 V
Max. Power Current (Imp)
STC 12,98 A; NOCT 10,58 A
Open-Circuit Voltage (Voc)
STC 50,20 V; NOCT 46,90 V
Short-Circuit Current (Isc)
STC 13,82 A; NOCT 11,17 A
Module Efficiency
21,29%
Power Tolerance
0~+5 W
Temperature Coefficient of Pmax
-0,35%/°C
Temperature Coefficient of Voc
-0,27%/°C
Temperature Coefficient of Isc
+0,05%/°C
Max. System Voltage
1.500 Vdc
Max. Series Fuse Rating
25 A
Operating Temperature Range
-40~+85°C
NOCT
45±2°C
Cell Type
Monocrystalline 182 x 91 mm
Number of Cells
144 (6x24)
Module Dimensions
2.278 x 1.134 x 30 mm
Weight
29,00 kg
Glass (Front & Back)
2,0 mm low iron tempered glass
Aluminium Frame
Anodized aluminium
Junction Box
Split junction box (IP68, three diodes)
Connector
MC4 compatible
Output Cables
4,0mm2, +300 mm, -300 mm customized length
Certifications
SNI IEC 61215-1-1:2016, SNI IEC 61215-1:2016, SNI IEC 61215-2:2016
Datasheet
Brochure
