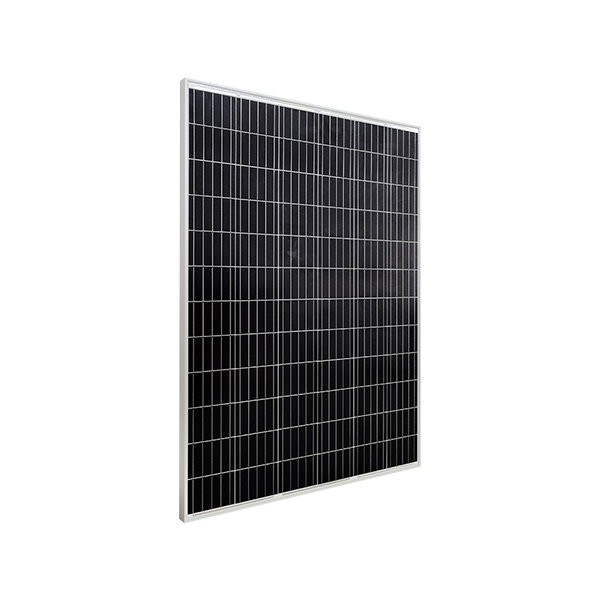

ICA SOLAR ICA200-72M 200Wp Mono 1265x770x30mm

Powered by high-efficiency monocrystalline cells, this series of high performance modules provides the most cost-effective solution for lowering the LCOE of any PV systems large or small.

Brands :

ICA SOLAR

Categories :

Mono
ica200-72m-1265x770x30mm-uzaoja
Informasi Umum
✅ Constant Voltage and Current Limiting
✅ Float and Boost Charger Selector Switch
✅ Fully Automatic Charging
✅ Easy Installation and Use
✅ Built-in Dropper for Load
✅ High Efficiency
✅ Custom Built Design
.
Spesifikasi Teknis
Max. Power (Pmax)
200 W
Power Tolerance (W)
±5%
Module Efficiency
20,53%
Max. Power Voltage (Vmp)
41,50 V
Max. Power Current (Imp)
4,82 A
Open-Circuit Voltage (Voc)
49,10 V
Short-Circuit Current (Isc)
5,18 A
Weight
10,00 kg
Module Dimensions
1.265 x 770 x 30 mm
Temperature Coefficient of Pmax
-0,45%/°C
Temperature Coefficient of Voc
-0,32%/°C
Temperature Coefficient of Isc
+0,06%/°C
Max. System Voltage
1.000 Vdc
Max. Series Fuse Rating
15 A
Operating Temperature Range
-45~+80°C
NOCT
45±2°C
Certifications
SNI IEC 61215-1-1:2016, SNI IEC 61215-1:2016, SNI IEC 61215-2:2016
Datasheet
Brochure
