ICA SOLAR SNV-GT3033TT 30kW 3xMPPT

The SNV-GT3033TT is a 30 kW three-phase on-grid solar inverter. It converts DC power from the solar panels into AC power for your building and works in parallel with the PLN grid. It does not use batteries.

Brands :

ICA SOLAR

Categories :

On-Grid
SNV-GT3033TT_1

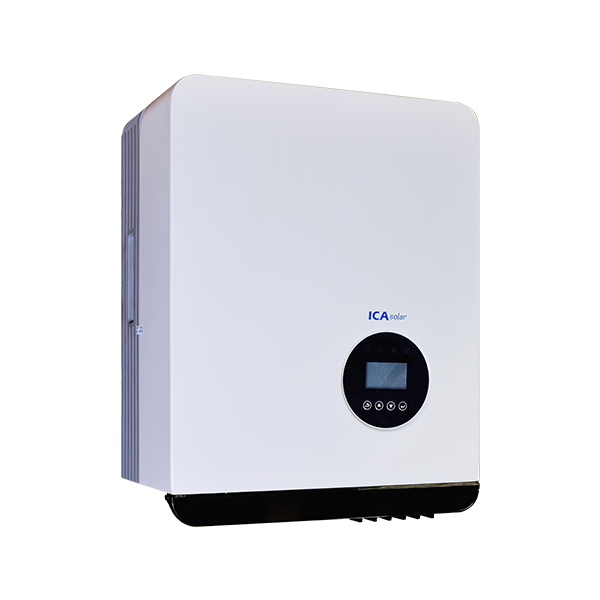

SNV-GT3033TT_2
Informasi Umum
Max. PV Voltage up to 1100V
DC power up to 1.35 ratio
Type II DC / AC SPD
DC / AC Ratio up to 1.5
IP66 protection
Compatible for big capacity PV panel
Zero Export Control (with Power Meter), Optional
High efficiency up to 98.7%
Smaller and lighter
Spesifikasi Teknis
Nominal AC Output Power (kW)
30 kW
Max. PV Input DC Voltage
1.100 Vdc
MPPT Voltage Range
200–1.000 V
Number of MPPTs
3
Strings per MPPT
2
Phase
3-Phase
Dimensions (D x W x H)
380 x 483 x 223 mm
Net Weight
25,5 kg
Input (DC)
Nominal Voltage
620 Vdc
Start-up Voltage
250 V
Max. Input Current per MPPT
30 A
Max. Short-Circuit Current per MPPT
40 A
Output (AC)
Max. AC Output Power
33 kVA
Nominal AC Voltage
400 V 3L+N+PE
AC Grid Frequency Range
50 Hz / 60 Hz ±5 Hz
Max. Output Current
47,8 A
Power Factor (cos Φ)
0,8 leading to 0,8 lagging
THDi
<3%
Efficiency
Max. Efficiency
98,70%
European Efficiency
98,40%
Protection
DC Switch
Yes
Output Overcurrent Protection
Yes
Anti-Islanding Protection
Yes
DC Reverse Polarity Protection
Yes
String Fault Detection
Yes
Surge Protection
Type II
Insulation Detection
Yes
AC Short-Circuit Protection
Yes
General Specification
Operating Temperature Range
-25°C to 60°C
Cooling Method
Fan cooling
Max. Operating Altitude
4.000 m
Relative Humidity
0–100% (non-condensing)
AC Output Terminal Type
Quick connector
Ingress Protection
IP66
Topology
Transformerless
Communication Interface
RS485 standard, WiFi or Ethernet (optional)
Display
LCD
Certifications
EN/IEC62109-1; EN/IEC62109-2; IEC/EN 61000-6-1; IEC/EN 61000-6-3; IEC/EN61000-6-2; IEC/EN61000-6-4; IEC61683; IEC60068; IEC60529; IEC62116; IEC61727;EN50549-1; NCRfG; NRS 097; VDE-AR-N-4105; VDE0126; CEI0-21; C10/C11; G98/G99
Datasheet
Brochure
User Manual
