EPEVER ET10420NC-G3 MPPT 100A (IP32)

The EPEVER ET10420NC G3 rated charging/discharging current at 100A; for 12/24/48VDC systems.

Brands :

EPEVER

Categories :

MPPT
ET-NC-Series

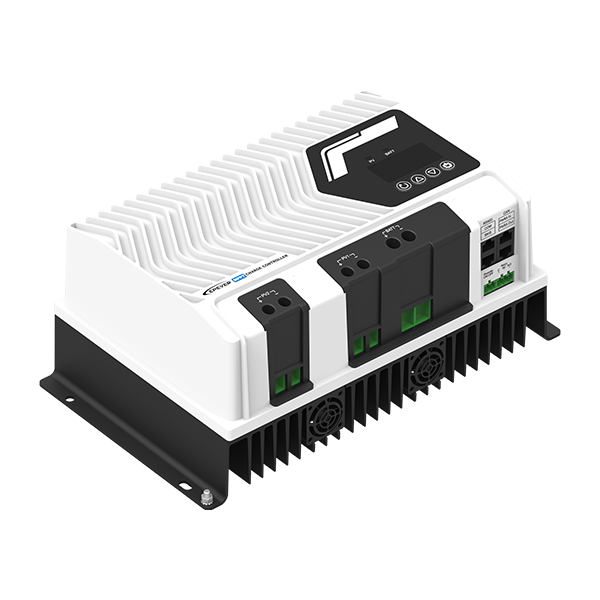

ET-NC-Series_2

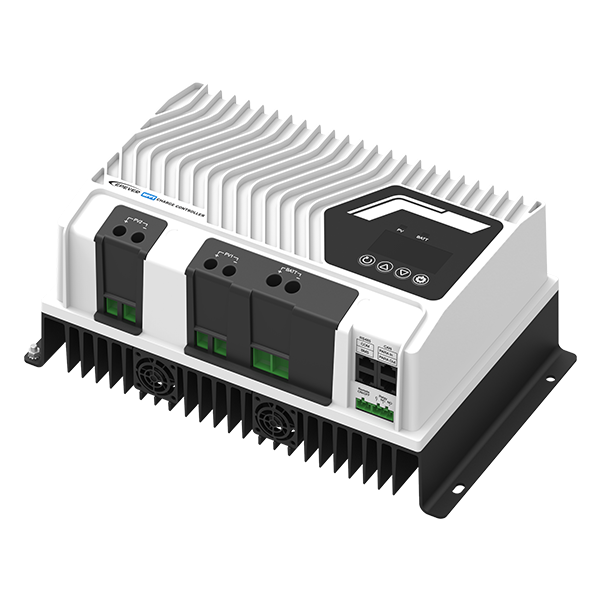

ET-NC-Series_3
Informasi Umum
Compatible with AGM, Gel, Flooded, LiFePO4 batteries, etc.
Supports 12V/24V/36V/48V systems; Charging current 50A–100A
Flexible communication options (WiFi, Bluetooth, 4G, etc.) further enhance system reliability and monitoring capabilities.
It is widely used in RVs, boats, industrial monitoring, and small to medium-sized solar power systems.
Spesifikasi Teknis
Charging/Discharging Current
100 A
Max. Charging Power
1.300 W/12 V; 2.600 W/24 V; 5.200 W/48 V
Max. Conversion Efficiency
98,5%
Dimensions (L x W x H), IP32
352 x 212 x 149 mm
Mounting Dimensions (L x W)
340 x 140 mm
Wiring Terminal
2AWG/35 mm²
Recommended Cable
2AWG/35 mm²
Net Weight, IP32
7,55 kg
Battery Rated Voltage
12/24/48Vdc or Auto
Controller Operating Voltage Range
8-62V
Battery Type
AGM (Default) / Gel / Flooded / User
Lithium Battery Type
LiFePO4 / Li (NiCoMn)O2 / User
Max. PV Open-Circuit Voltage
200 V (@ lowest temperature); 180 V (@ 25°C)
MPPT Operating Voltage Range
(Battery voltage plus 2 V, and > 28 V) to 144 V (@ 25 °C)
Tracking Efficiency
≥ 99,5%
Temperature Compensation Coefficient
-3 mV/°C/2 V (Default)
Self-Consumption (Enabled Communication)
98 mA/12 V; 60 mA/24 V; 46 mA/48 V
Self-Consumption (Disabled Communication)
48 mA/12 V; 25 mA/24 V; 14 mA/48 V
Grounding Type
Common negative grounding
Dry Contact (Oil Generator)
Rated value: 5 A/30 Vdc; Maximum value: 0,5 A/60 Vdc
RS485 Communication Port
5 Vdc/200 mA (RJ45)
Mounting Hole Size
Φ7 mm
Operating Temperature Range
-25°C to +60°C (Derating when temperature is higher than 40°C)
LCD Temperature Range
-20°C to +70°C
Storage Temperature Range
-30°C to +70°C
Relative Humidity
5%–95% (N.C)
Max. Operating Altitude
< 5.000M (Derating when altitude is higher than 2.000 m)
Enclosure
IP32 (Controller Only)
Pollution Degree
PD2
Safety
EN/IEC62109-1
EMC
EN61000-6-1 / EN61000-6-3
FCC
47 CFR Part 15, Subpart B
ROHS
IEC62321-3-1
