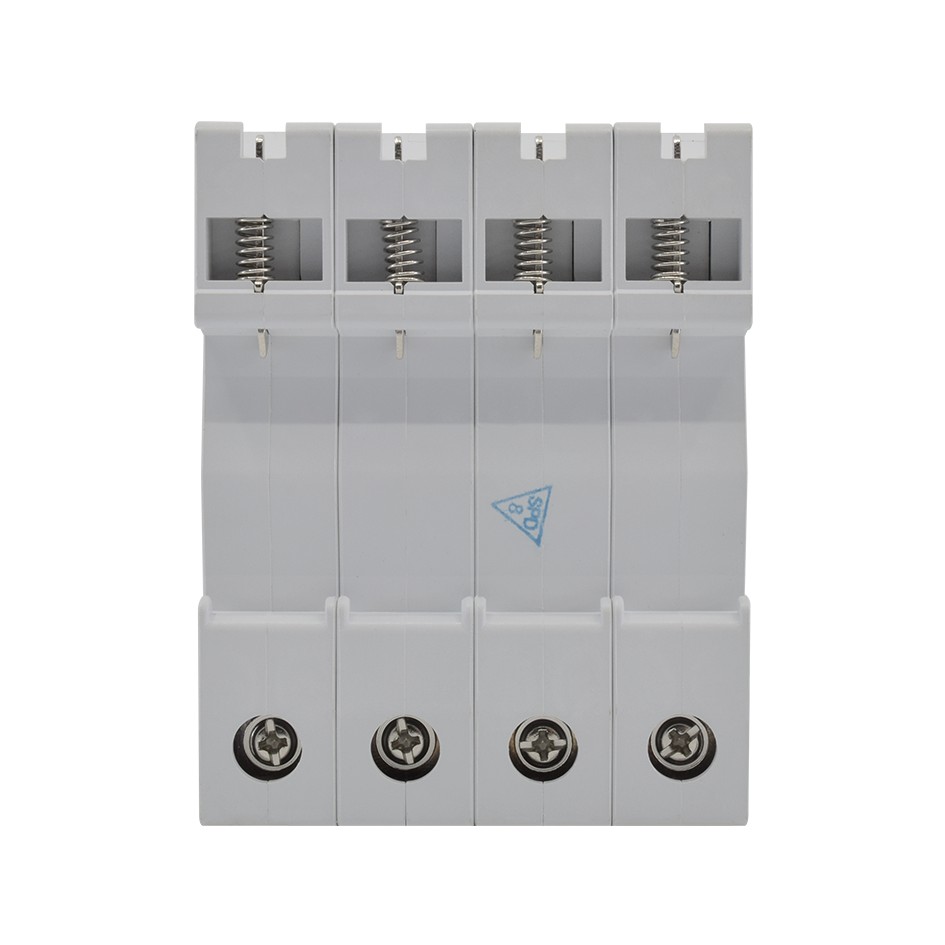

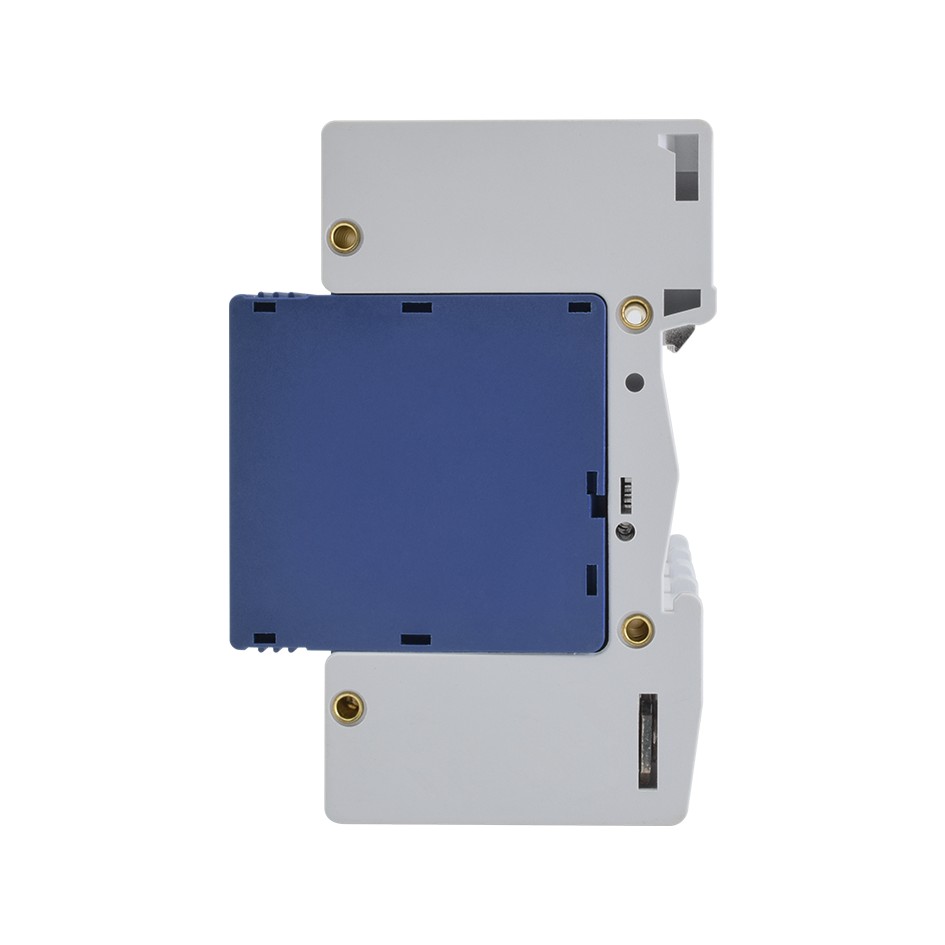

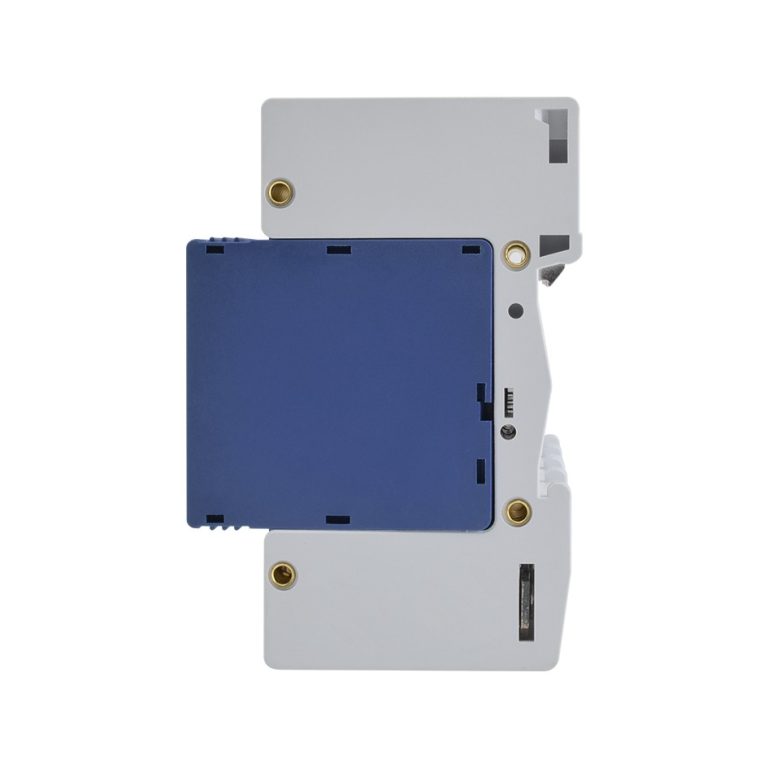

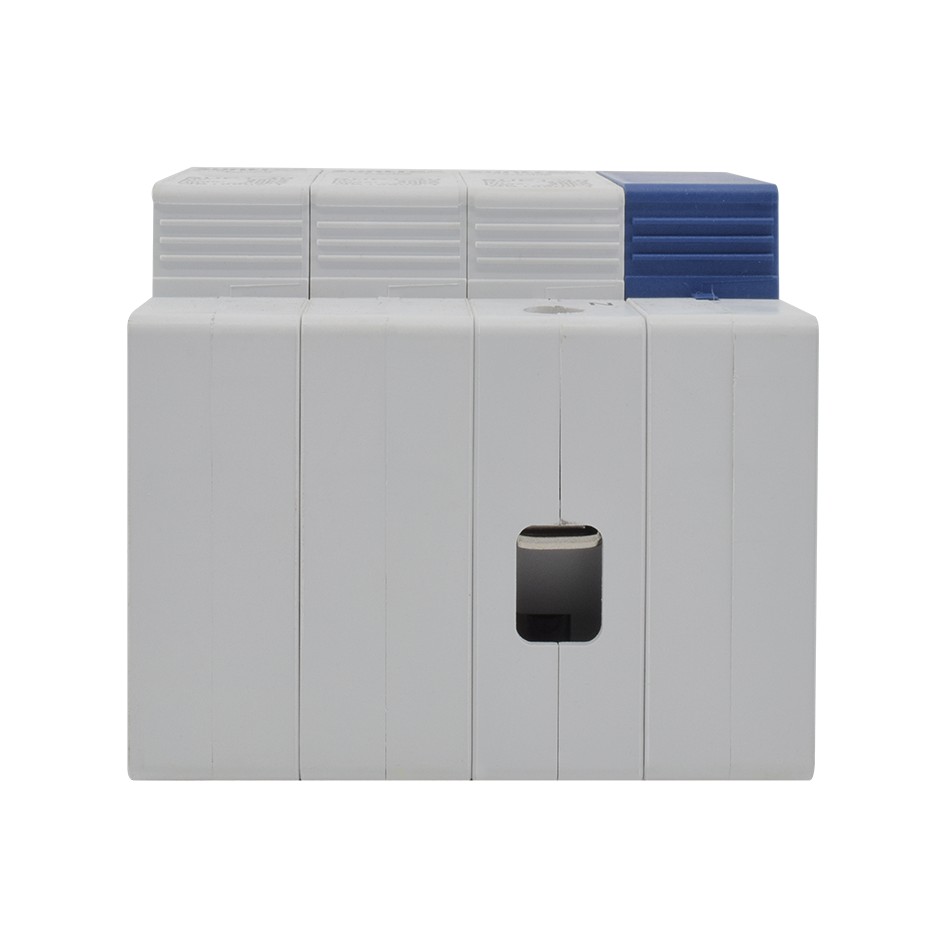

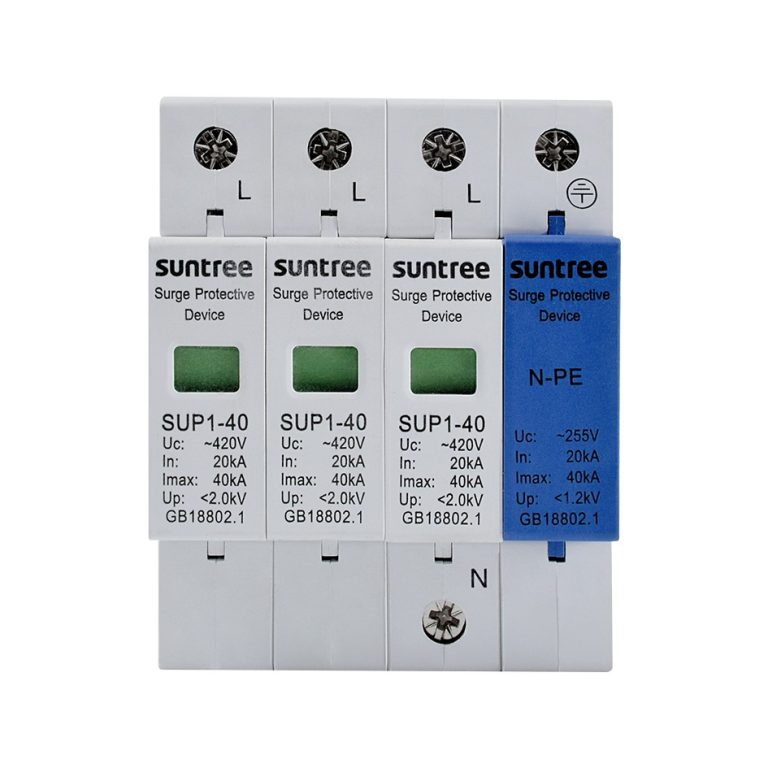

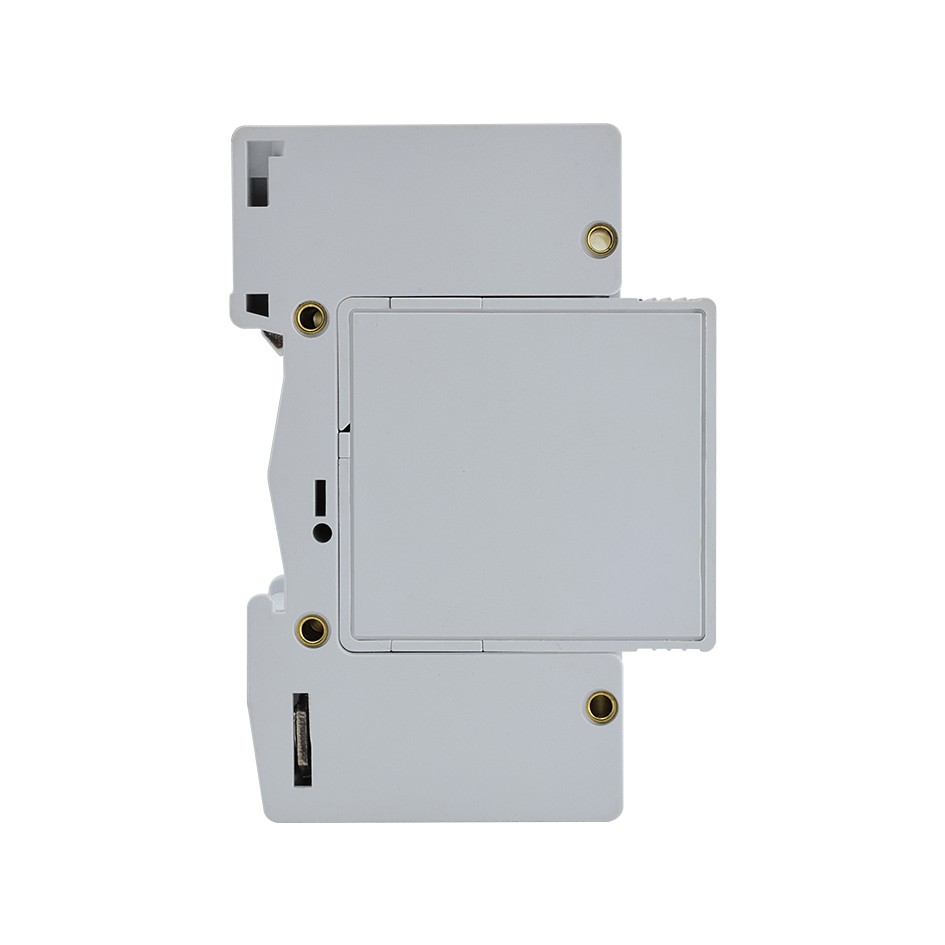

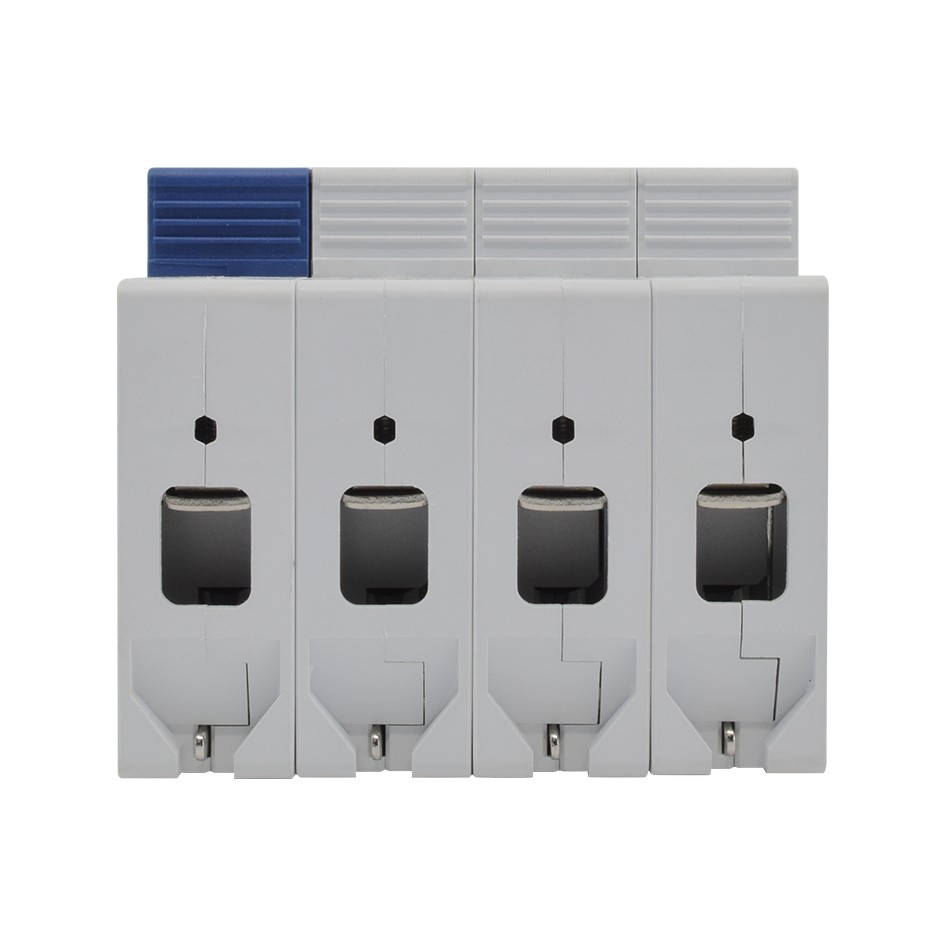

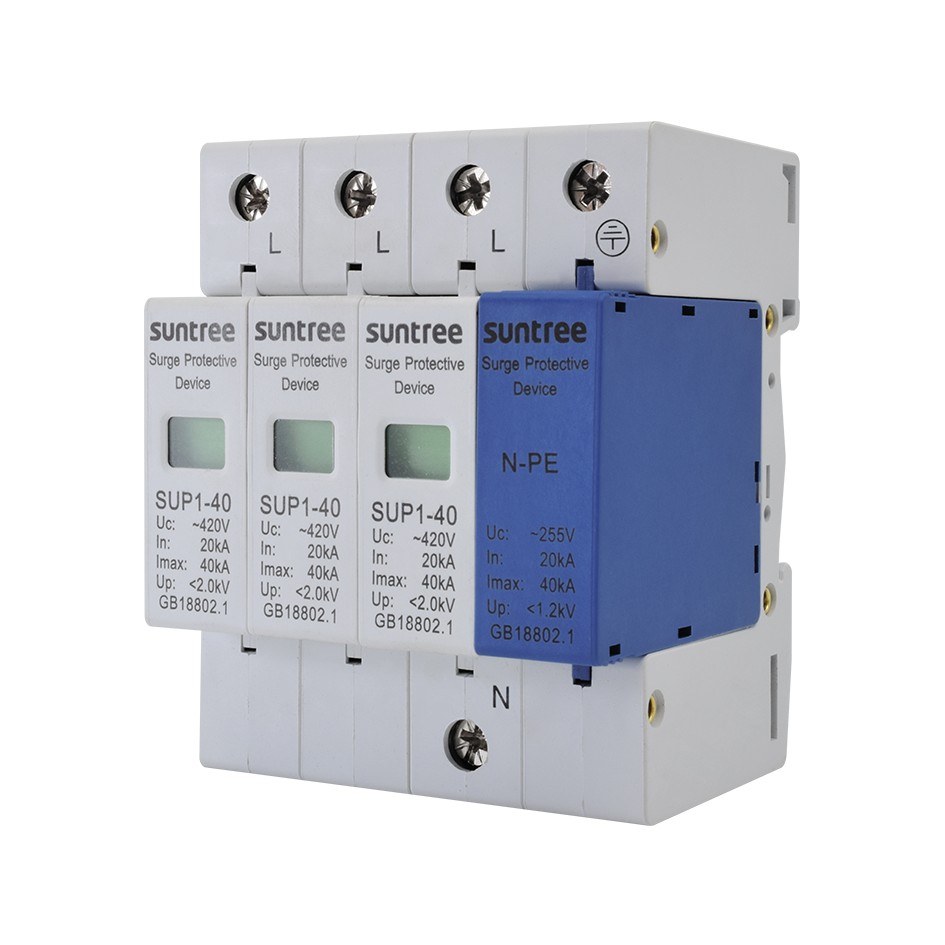

AC SPD 3P+N 40kA 380Vac

AC SPD (Alternating Current Surge Protective Device) adalah perangkat yang dipasang untuk melindungi peralatan instalasi listrik arus Bolak Balik (AC) pada jaringan listrik PLN dari kerusakan / terbakar akibat surge lightning (lonjakan listrik akibat sambaran petir mendadak) ataupun OverVoltage Surge (voltase berlebihan yang mendadak ) yang masuk jaringan listrik PLN maupun dari inverter penghasil energi listrik arus bolak balik lainnya ( AC electricity Generator). cara kerja SPD (Surge protective Device) adalah Mengalihkan lonjakan arus liar tersebut ke bumi (earth) secara seketika.

Brands :

SUNTREE

Categories :

AC SPD
1-vmivia
2-b16hv4
3-3raq9a
4-ct7phc
5-xe96nv
6-huqvm7
7-jdfnti
Informasi Umum
No data was found
Spesifikasi Teknis
SUP1 AC SPD 20-40KA
Rated Operating Voltage Un (V~)
380 V
Max. Continuous Operating Voltage Uc (V~)
400 V
Voltage Protection Level Up
1,8 kV
Nominal Discharge Current ln (8/20s)
20 kA
Maximum Discharge Current lmax(8/20s)
40 kA
Response Time (ns)
25 nano seconds
Test Standard
IEC61643.1, GB
Operating Temperature Range
-40~+85°C
Max Connection Line
35mm2 hard wire/35mm2 strand wire copper line
Recommended Connection Line
16mm2 hard wire/25mm2 strand wire copper line
Installation
Standard Rail 35 mm
Material of Outer Covering
Burning-proof Nylon
